Apache Case Hinge Pin Retention Fix

The factory hinge pin on this Apache case kept walking out, which was not something I was interested in trusting long-term on a motorcycle.

I wanted a fix that was simple, inspectable, and made out of normal hardware I could get easily. No drama, no cleverness for its own sake, just a hinge pin arrangement that was not going to migrate out on its own.

What I ended up using was brass tube, threaded rod, washers, blue Loctite, and lock nuts.

The Problem

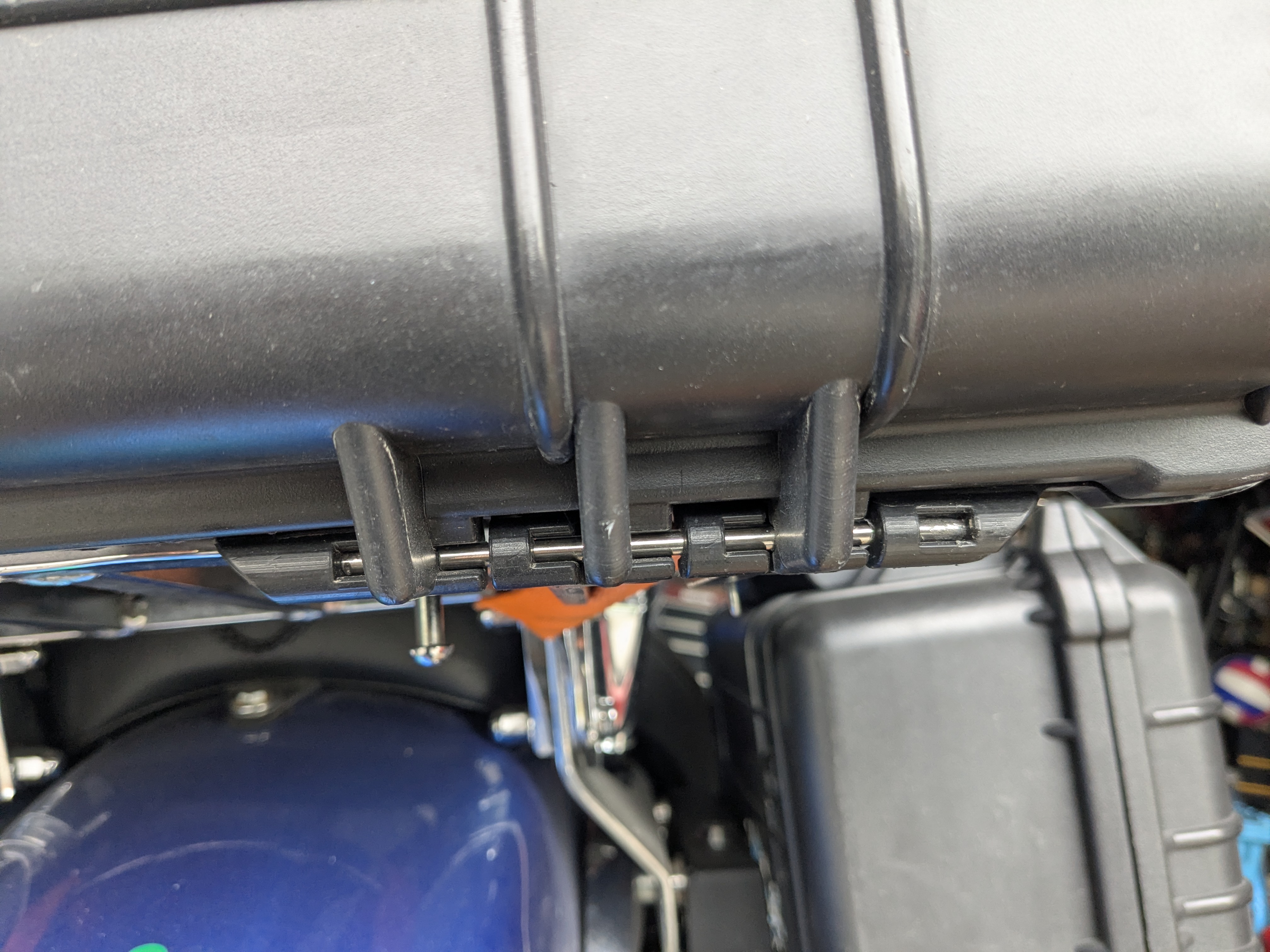

The stock hinge arrangement works until it does not. In my case, the pin was gradually shifting out of the hinge over time. That may be acceptable on a box that lives on a shelf. It is less acceptable on something bolted to a motorcycle and exposed to vibration.

I did not want to keep pushing the original pin back in and pretending that counted as a fix.

The Approach

The replacement is straightforward:

• brass tube through the hinge as the bearing surface
• threaded rod through the brass tube
• washers and lock nuts on the ends
• blue Loctite on the threads

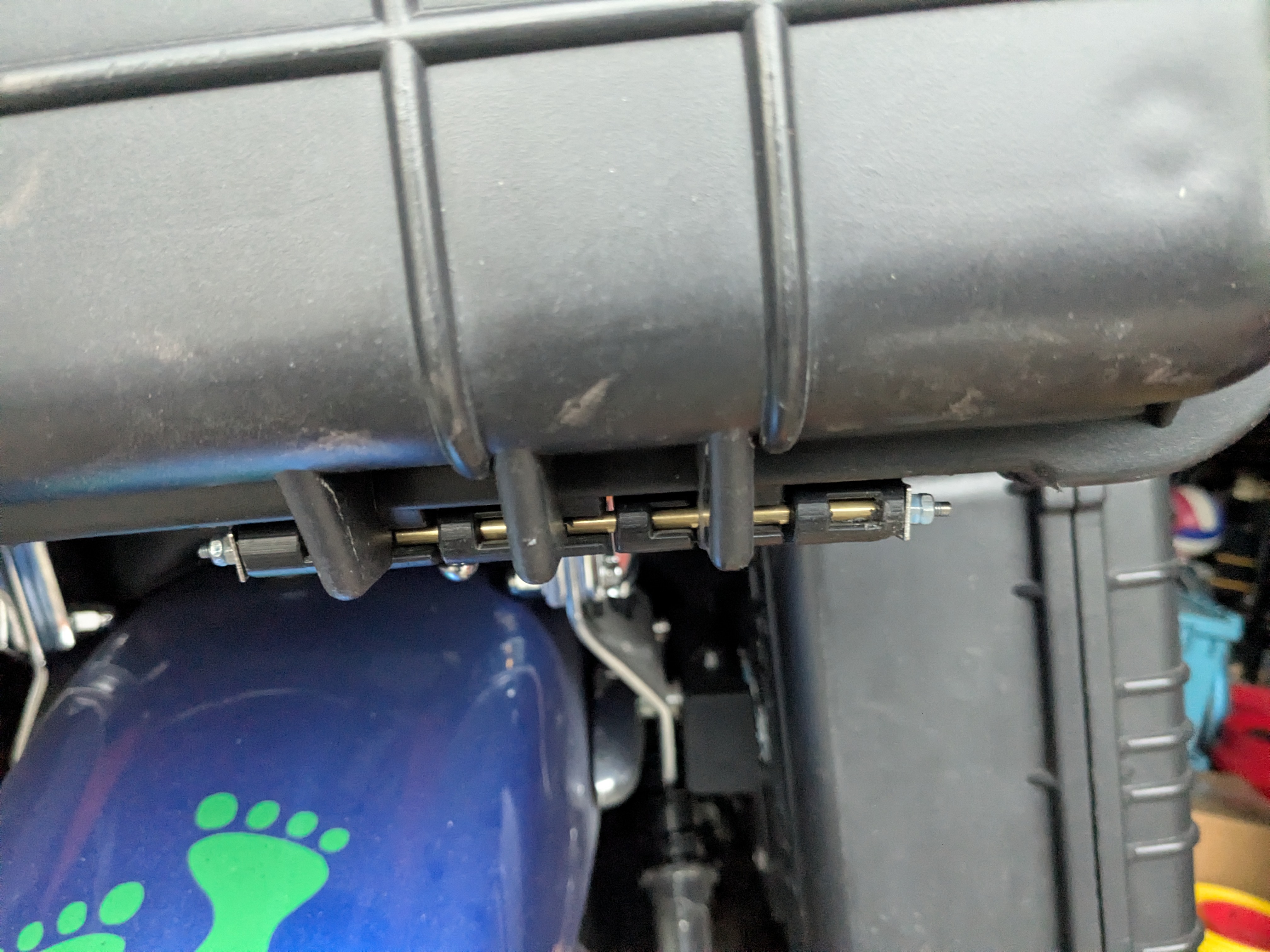

That gives the hinge a positively retained pin instead of relying on the factory arrangement to keep behaving.

One detail that mattered more than it may look in the photos: I used a razor knife to remove the tapered factory ends of the hinges so the washers would sit flat. Without doing that, the washers do not bear correctly and the whole thing is sloppier than it needs to be.

Parts Used

Here is what I used:

• uxcell 20Pcs Fully Threaded Rod
• uxcell Brass Round Tube 4mm OD
• uxcell Hex Lock Nuts - M3 x 0.5mm Stainless Steel Nylon Insert Self-Locking Nuts
• 4mm drill bit
• washers
• blue Loctite

What I Did

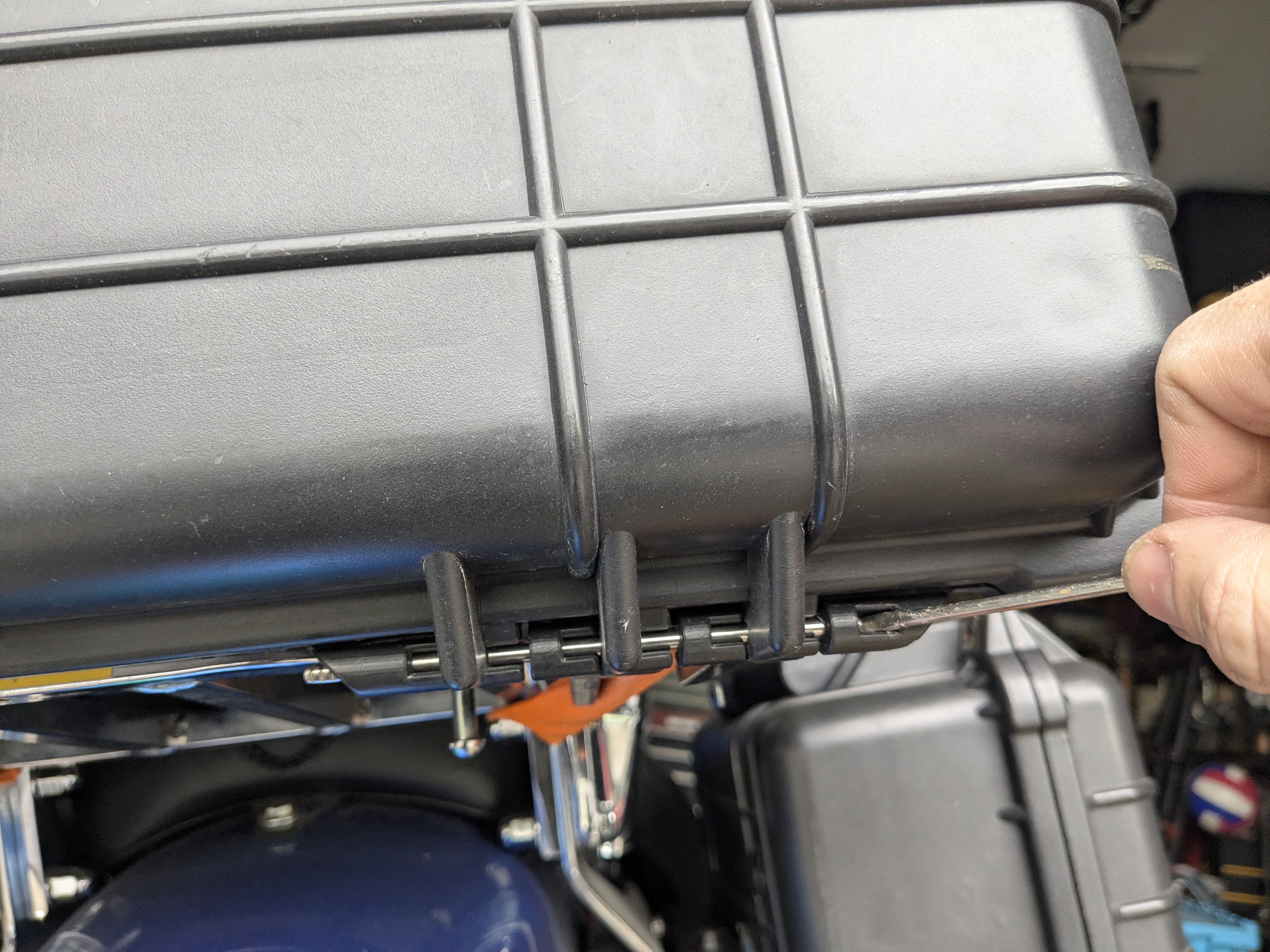

I first drove the original hinge pin far enough to grab it.

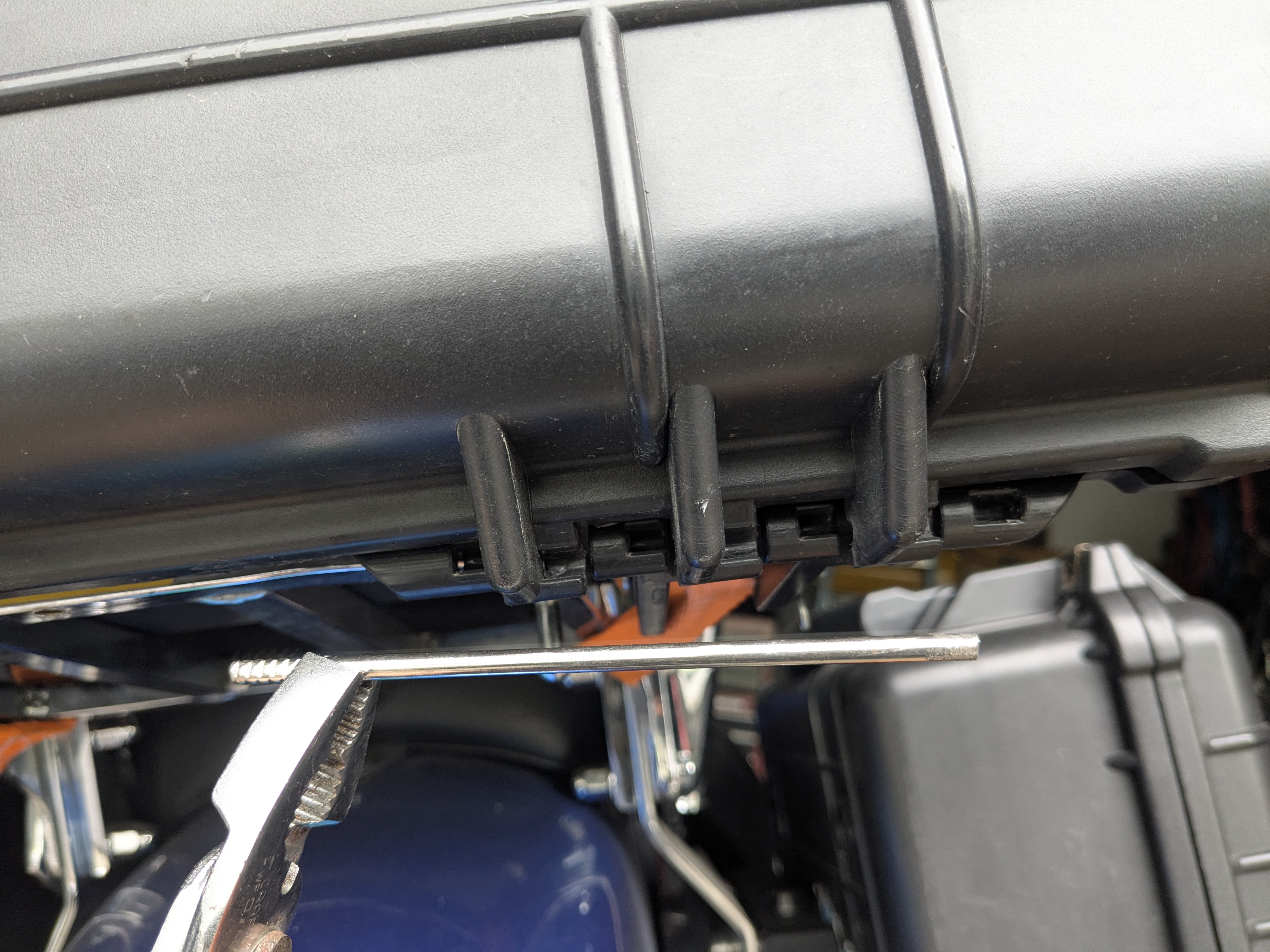

Once it was exposed, I pulled it the rest of the way out and checked how everything lined up.

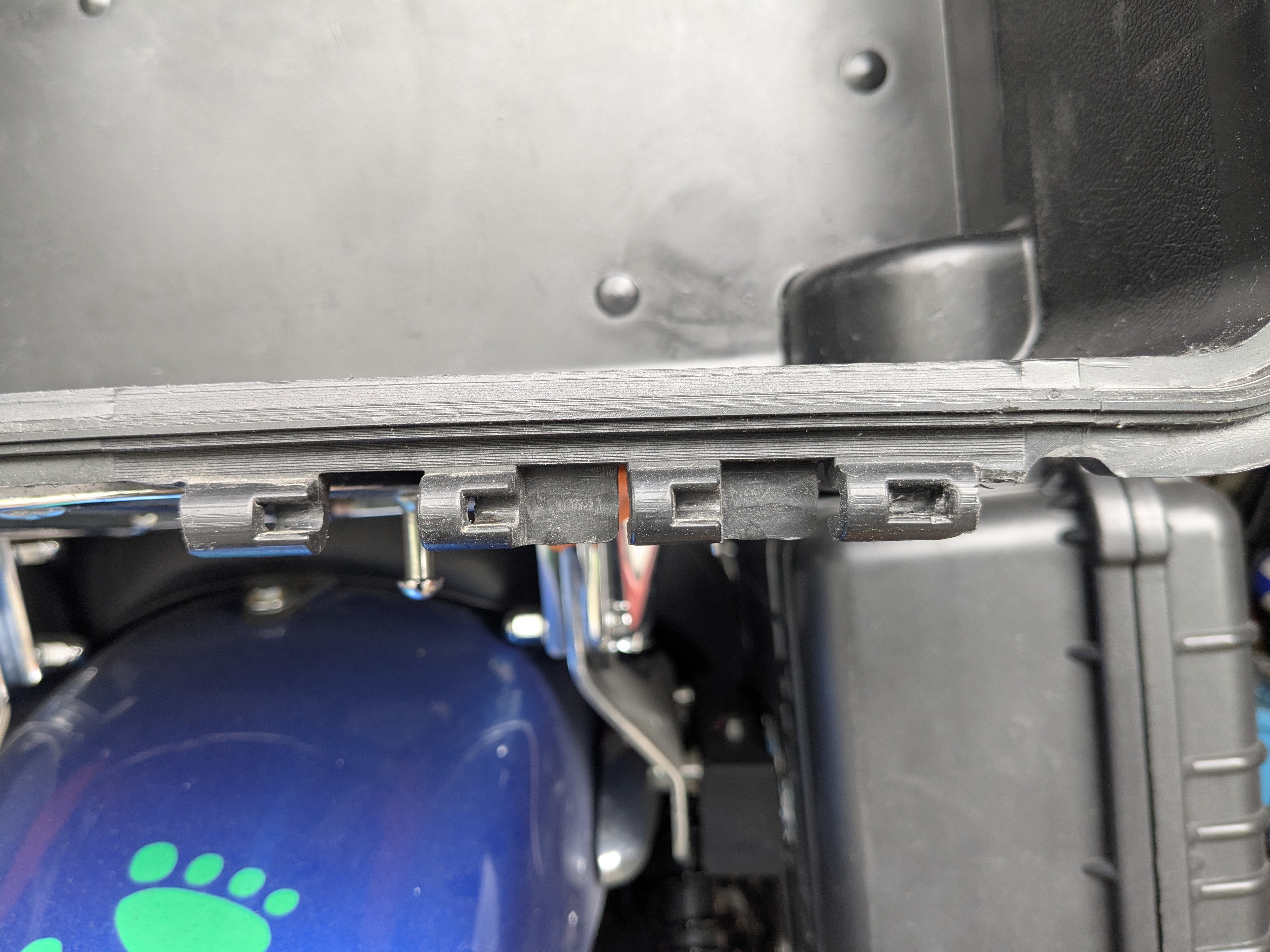

After that, I trimmed the tapered plastic on the factory hinge ends with a razor knife so the washers would have a flat surface to sit against. That was a necessary step, not cosmetic cleanup.

I then used a 4mm drill bit where needed so the brass tube would fit properly. The brass tube became the hinge sleeve, with the threaded rod running through it.

From there it was just assembly work:

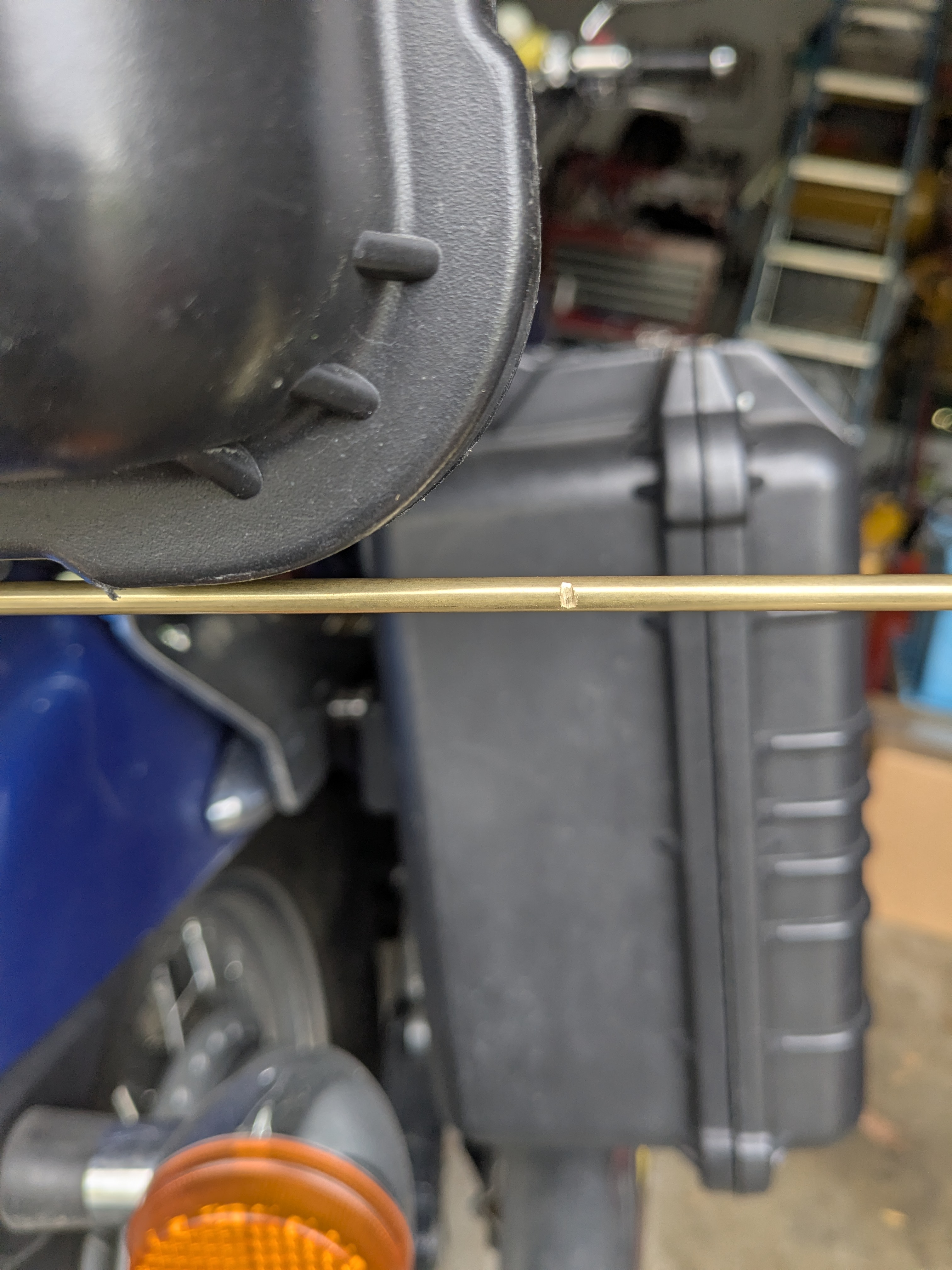

• cut brass tube to length
• deburr it
• run the threaded rod through
• add washers
• add blue Loctite
• install lock nuts
• tighten just enough to retain everything without making the hinge bind

That last part matters. This is a hinge, not a clamped joint. Tight enough to stay together is the goal. Not “as tight as possible.”

Why I Like This Fix

What I like about this approach is that it is mechanically obvious.

The hinge pin is no longer something that can quietly wander out. It is captured. It is visible. It is easy to inspect. If something starts loosening, I can see it.

That is the kind of repair I prefer on luggage and utility hardware. No mystery. No hoping. Just a simple retained assembly.

Final Thoughts

This was not a complicated project, but it solved an annoyance in a way I trust more than the factory setup.

If you have an Apache case hinge pin that keeps walking out, this is one workable way to deal with it using common parts. The main detail I would emphasize is the one that is easy to miss: remove the tapered factory hinge ends so the washers can sit flat.

That made the finished result much cleaner and much more solid.
